DC Motor

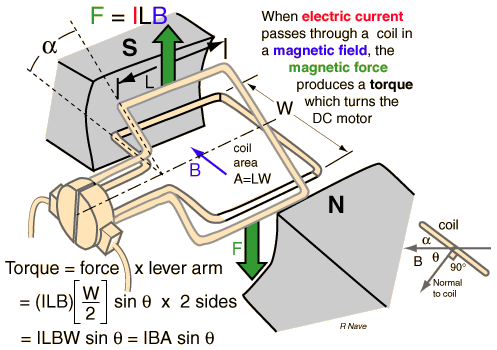

Image taken from Hyper Physics
DC motor works on application of DC power supply. Working principle of DC motor and generator is shown. The current in left and right end of the coil is opposite to each other but magnetic field is perpendicular for both the parts of the coil. As the direction of flow is opposite, the force produced is also opposite which results in torque acting on the coil. The coil starts rotating and keep on reducing when it moves to the top, the torque is zero at the top and again start increasing. The reversal of current is required in the conductor after half rotating to keep the torque in one direction for which commutator and brushes are provided.
There are three types of DC motor namely, Shunt Motor, Compound Motor and Series Motor. In earlier days, before the advent of AC induction motor, Shunt and Compound motors were used for constant speed motors. The most important advantage of DC series motor is its ability to produce large starting torque and making it suitable for an application which requires high starting torque such as traction, hoist etc. This application was widely used till the advent of electronics drives to get the similar characteristics from induction motor.

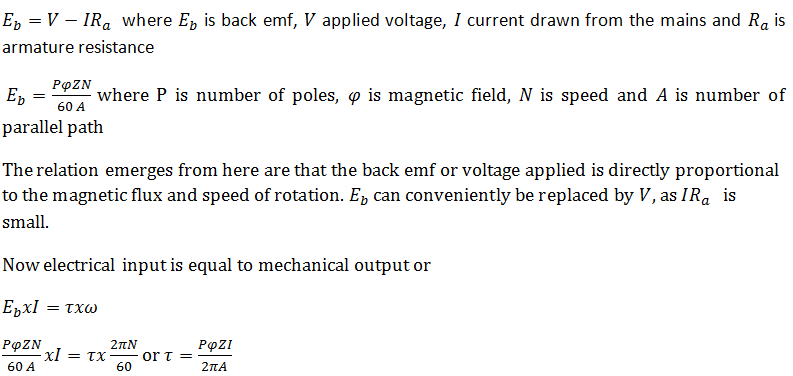

The standard equations of DC motors are
From this, following interpretation emerges to be remembered are
Shunt and Compound DC Motor: In these motors, the field and armature is connected in parallel to the applied voltage. Speed is directly proportional to voltage. Torque is proportional to armature current. These motors found wide application in 20th century for all fixed speed application and almost constant torque. But with the development of three phase induction motor, application of this motor is now obsolete.
Series Motor: The field is connected in series to the armature and field is current is regulated by insertion of permanent and speed regulation field diverter. Speed is inversely proportional to flux and during start if does not have a mechanical load, the speed will shot up. The DC series motor therefore, always starts on load. Torque is proportional to square of the armature current before saturation. Series motor has wide applications for traction, crane, hoists etc. But now with the development of solid state technology to derive similar characteristics from Induction motor, series motor is also now obsolete except for maintenance for the life cycle of the motors in service.
“Always remember that when high starting torque is the requirement, series DC motor had been the choice.”
For more details on DC Series Traction Motor visit ➡
